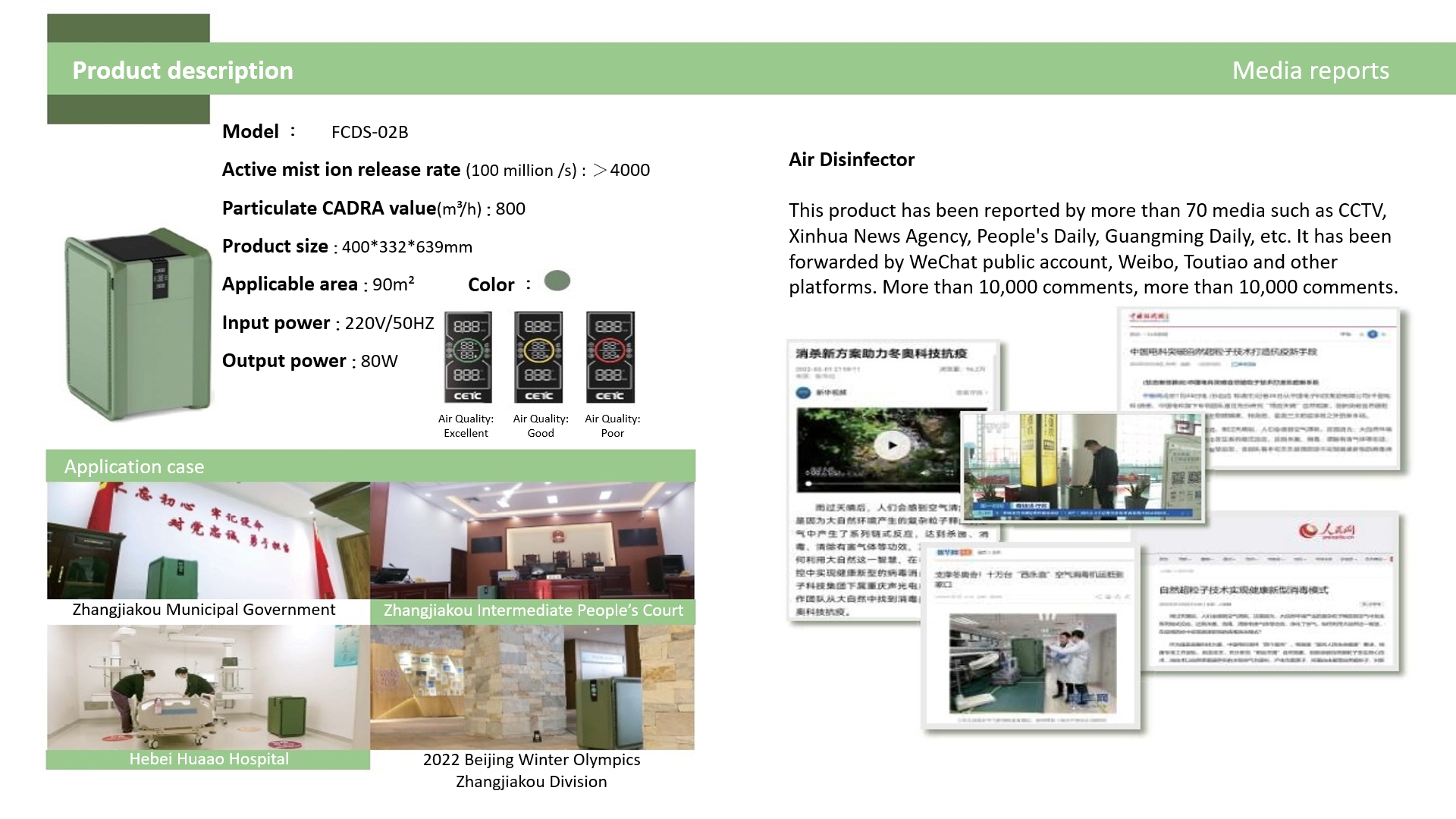

Product Name: FCDS-02B Air Disinfector

Product use: suitable for air disinfection in general operating rooms, delivery rooms, blood wards, burn wards, protective isolation wards, and intensive care wards; disinfection supply center inspection packaging sterilization area and sterile item storage area, severe dialysis Air disinfection in the center; air disinfection in examination rooms, treatment rooms, infectious disease clinics and other places.

Technical parameter requirements:

1. Using plasma + active mist ion disinfection and sterilization, the sterilization is broad-spectrum and thorough; it contains activated carbon/HEPA high-efficiency filter and primary filter, which can effectively remove volatile gases in the air, various odors and filter hair, Large dust particles such as dust;

2. Appearance size 400×332×639 (mm3), movable floor equipment;

3. Coexistence of human and machine, continuous dynamic disinfection can be carried out in the state of people, without any harm to people and items;

4. The weight of the whole machine is less than or equal to 13kg, the rated circulating air volume is more than or equal to 750m³/h, and it can be applied to places with a volume of 60m³ and below;

5. Rated power 80W; power supply 220V 50Hz;

★6. The plasma density generated by the electric field can reach 2.2×1014m-3; (provincial CDC or third-party testing agency testing report can be provided)

7. Equipped with an active mist ion generating core, the hydroxyl radical release efficiency of the active mist ion generating core should not be less than 6.9×1011/s, and the life span of hydroxyl radicals in the released active mist ions should not be less than 8 minutes;

8. The safety of hydroxyl radicals generated by the active mist ion generator core has been verified by acute inhalation toxicity experiments;

9. The equipment continues to work for 1 hour, and the residual ozone content is less than 0.003mg/m³.

★10. The device is equipped with 4G/5G communication chip, which can be connected to the IoT device management platform. After logging in to the management platform, you can view the operating status of the device and the service life of consumables online, and you can remotely control the opening and closing of the device online;

★Disinfection effect requirements:

★1) When the active mist ion generating module runs for 15min, the killing rate of the original strain of COVID-19 virus should be greater than 99.90%;

2) When the active mist ion generating module runs for 15min, the killing rate of delta virus strain shall be greater than 99.90%;

★3) When the active mist ion generating module runs for 15min, the killing rate of Omicron virus strain shall be greater than 99.90%;

4) When the active mist ion generating module operates for 120min, the killing rate of methicillin-resistant Staphylococcus aureus (MRSA) shall be greater than 95.00%;
